Free delivery from 30€

  Secure payment

With our partner Crédit Agricole



Guarantee 2 years, AS internal



Customer Service : dial +33 9 72 232 232

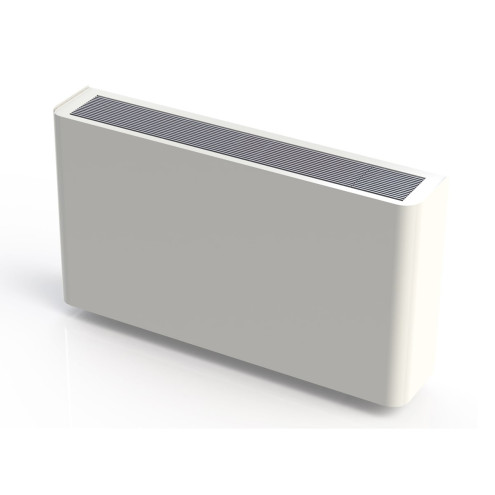

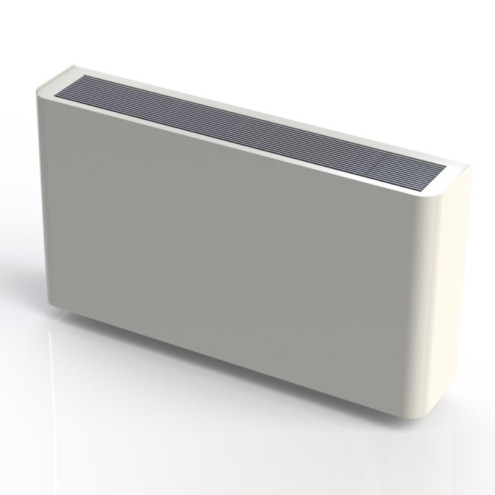

Ultra quiet dehumidifier NOVA 165 with heating option is the result of a subtle combination of technological innovation and Italian design.

POOL AND SPA AIR DEHUMIDIFIER NOVA 165

NOVA equipment are made for required 24/7 working in commercial premises, industrial places, and pools with a very high level of humidity.

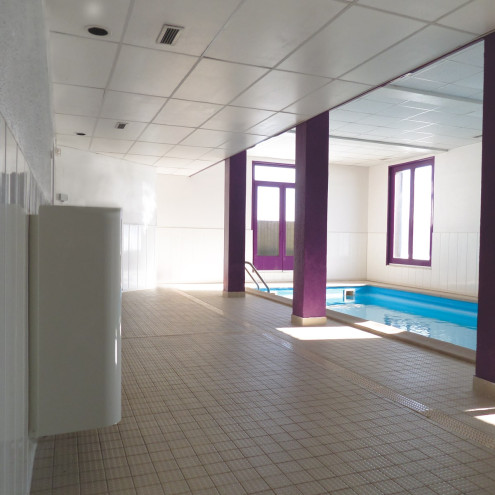

Their main installations take place in environments such as swimming pools, museums, archives, libraries, churches, canteens, warehouses, and in general every premises where condensation can cause damages on buildings or products.

NOVA is a pioneering technical solution with a pleasant aesthetics.

NOVA devices come with an advanced high-performance control, temperature and humidity probes : the dehumidifier is completely autonomous in reading and in these two parameters management.

This control even satisfy the most demanding customers.

The NOVA range has been designed for dehumidification and air heating of indoor swimming pools, jacuzzis, thalassotherapy and sports halls.

Dehumidification max at 30°C - 80%RH

L/day

Air flow

15 m3/h
déshumidifcateur pour piscine en acier

Premium manufacturing quality

Dehumidifier for indoor swimming pools - economical, innovative and design

This modern collection, reinforced by the steel bodywork with baked paint, resists the aggressiveness of the air in the pool area. The heat exchangers are entirely treated against corrosion.

All the screws and bolts are made of stainless steel or carbon steel with passivation treatment. The condensate drip tray is also made of STAINLESS STEEL.

déshumidifcateur pour piscine silencieux

Acoustic treatment and air quality

This dehumidifier is equipped with complete sound insulation which gives it a very low noise level. NOVA air dehumidifiers are ultra silent.

A washable air filter underneath the unit retains dust and impurities in the air and is accessible without disassembly.

déshumidifcateur pour piscine silencieux avec panneau de controle deporté

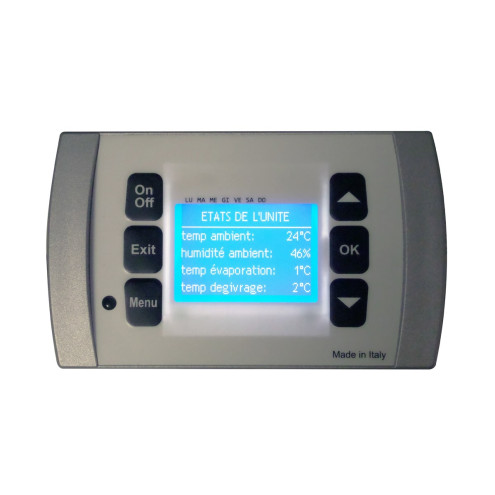

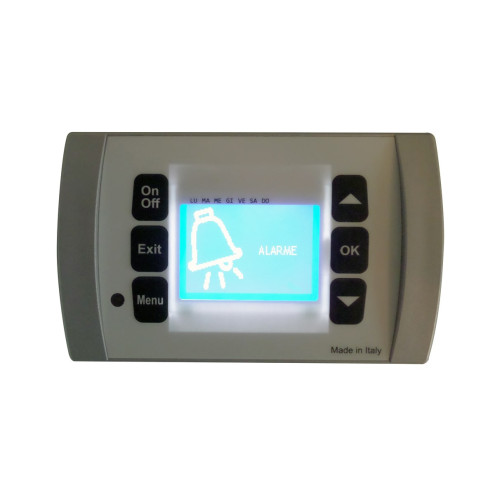

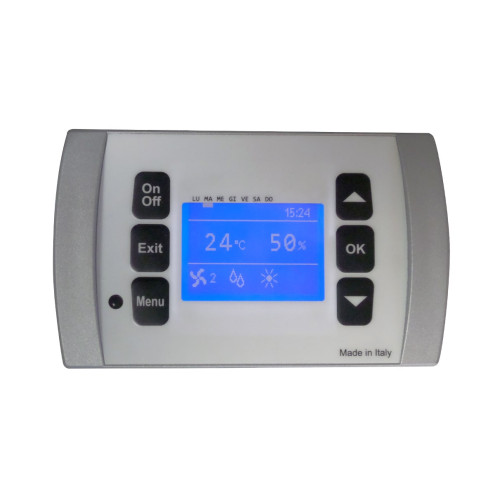

Control pannel

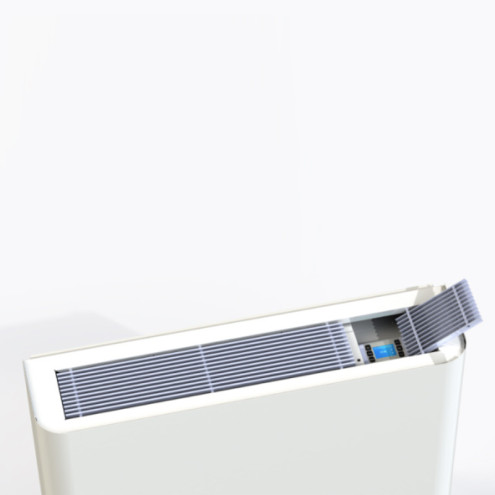

The control screen allows you to precisely manage the optimal comfort of the room. The graphic console, located on the top of the unit can easily be removed and mounted on a wall for a display in backlit atmosphere and in French. All mechanical parts are inaccessible thanks to the discreet and elegant front panel.

The panel can be easily removed to allow access to the components for quick and easy maintenance. It can also be offset on a wall for easy legibility.

déshumidifcateur pour piscine silencieux avec panneau de controle deporté
déshumidifcateur pour piscine silencieux avec panneau de controle deporté
déshumidifcateur pour piscine avec chauffage facile a installer

Optional heater

From NOVA 75 upwards, the dehumidifier can be equipped with an optional electric or hot water heating system controlled by its own thermostat. NOVA is a durable dehumidifier par excellence.

The NOVA 165 appliance is designed for use in commercial and industrial environments and in swimming pools with high humidity levels where 24-hour operation is required.

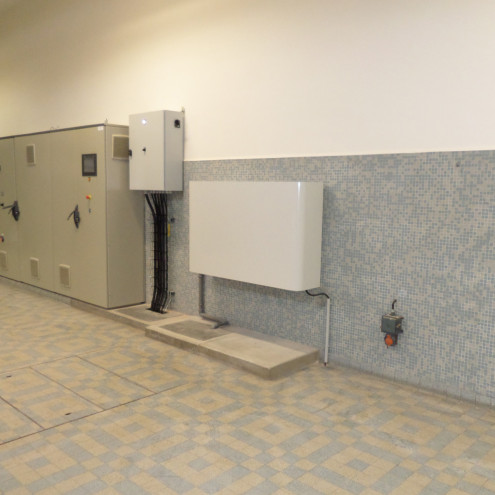

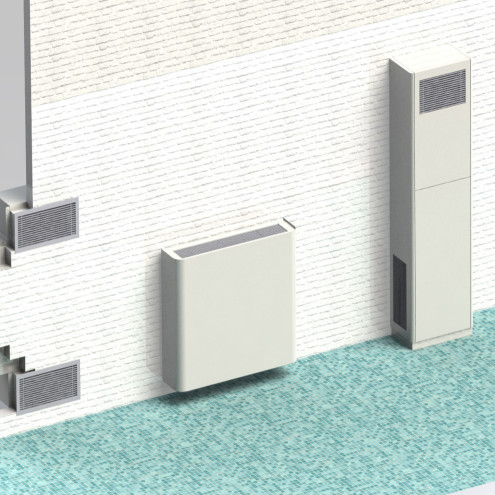

Installation

Its typical installation is in environments such as swimming pools, museums, archives, libraries, churches, canteens, warehouses, and in general all premises where the formation of condensation can cause damage to the structure of the building or the products.

The NOVA dehumidifier is delivered after an advanced, high performance control, complete with temperature and humidity probes: the dehumidifier is therefore completely autonomous in the reading and management of these two parameters.

Translated with www.DeepL.com/Translator (free version)

NOVA 165

Pool max surface

recommanded

The pool surface, water temperature and air temperature are the key factors to make sure you don't make a mistake. Here are some graphs to guide you.

In addition, the refrigeration circuit of the NOVA range is equipped with a compressor with LG thermal protection, appreciated for its reliability, a thermostatic expansion valve, a high pressure safety device with pressure switch, a charge control valve, a refrigeration dehydrator and a sight glass.

For more information, please contact our customer service department to choose the ideal dehumidifier according to your specific requirements. (by email to via the contact form or by phone: +33 972 232 232)

evolution de l'efficacité d'un deshumidificateur de piscine en fonction de la temperature et surface du bassin
evolution de l'efficacité d'un deshumidificateur de piscine en fonction de la temperature et surface du bassin

Max dehumidification at 30°C - 80%HR

L/day

Max dehumidification at 30°C - 60%HR

L/day

Max dehumidification at 27°C - 60%HR

L/day

Max dehumidification at 20°C - 60%HR

L/day

Dehumidification expert since 2006

ANB-DESH0042
5 Items

Data sheet

Product dimensions (H x W x D in mm)
NOVA 850 x 1350 x 330 et NOVA ENCASTRE 833 x 1302 x 307
Product weight (kg)
88
Weight with packaging (kg)
90.0000
Power consumption (W)
3100
Noise level (dB)
50 dB (A)
Suitable for rooms up to (m²)
40 m2 of pool
Size recommanded (m2)
40 - 59
Technology
Compressor
Number of speeds
3
Maximum air flow (m3 / h)
1000 m³/h
Maximum dehumidification (L/day)
30°C / 80% HR : 165 Liters/day ** Déshumidification à 27°C / 60% HR : 119 Litres/jour ** Déshumidification à 20°C / 60% HR : 82 Litres/jour
Aroma diffusion
No
Use
Professional
Warranty (Y)
2
    Why is my appliance not dehumidifying enough?
    • Make sure the unit is not placed against a wall or that a piece of furniture is not blocking the air inlet of the dehumidifier. If so, move it.
    • The desired humidity level is not set low enough: switch to "Continuous" mode instead of "Auto".
    • The room temperature is below 15¬∞C: this is the limit at which most compressor dehumidifiers are ineffective.

    Why is a compressor dehumidifier almost ineffective below 10°C or 15°C?

    The operation of a compressor dehumidifier is similar to that of a refrigerator. In fact, the condenser (the very fine lamella grid) is slightly colder than the ambient air. Thus, the water contained in the air condenses and flows into the tank. Below about ten degrees, these water droplets risk freezing instantly on contact with the condenser, and forming a block of ice at the back of the device. To avoid this, new generation dehumidifiers are equipped with a "defrost" or "anti-freeze" mode that will disconnect the compressor for a while (or longer if it is very cold). The air thus circulates at room temperature and the device does not freeze, but it is almost ineffective.


    What is continuous drainage for?

    Continuous drainage means that you don't have to empty the tank all the time. Thus, the condensates (water collected by the dehumidifier) ​​flow away by gravity. This operation is always carried out using a short pipe (maximum 50 cm) with an internal section of approximately 1 cm.


    Is it possible to extend a continuous drainage pipe?

    It is not impossible but not recommended because if your pipe gets clogged or does not drain well, the water will rise up in the pipe and flooding is guaranteed. If you risk it, oversize the diameter of the extension pipe and join the 2 pipes well, for a good seal. Make a small hole on the upper part of the pipe, directly after the water outlet, at the back of the appliance.


    How do I connect the drain hose to my dehumidifier?

    First, we recommend removing the tank to make installation easier. Then, connect the hose to the unit through the opening on the back or side of the dehumidifier. Replace the tank and place the other end of the drain hose directly into a water drain.


    Brown liquid in your dehumidifier : Should you be worried?

    You've noticed a brownish liquid flowing from the hose or present in the tank of your dehumidifier? This phenomenon can be surprising, as the water extracted from the air is supposed to be clear. Rest assured: no internal part of your appliance produces this type of liquid. It is most likely pollution present in the ambient air, especially if the appliance is used in a garage or a poorly ventilated space.

    Hypothesis No. 1: Presence of Fungal Spores or Mold

    In humid environments like garages, microscopic spores (mold, fungi, etc.) can float in the air. Once captured by the airflow of the dehumidifier, they are carried with the condensed water and can color the liquid brown. You might also perceive a musty or damp earth odor when approaching the reservoir.

    Hypothesis No. 2: Air Pollution by Organic Residues or Greasy Dust

    A garage is often an environment exposed to oils, fuels, solvents, brake dust, etc. These particles, suspended in the air, can be sucked in and mix with the condensed water, giving it a dark brown tint. This phenomenon is common in rooms where volatile organic or chemical substances circulate.

    What to do if this happens?

    Here are some recommendations to clean your appliance and identify the exact origin of the problem:

    1. Clean the drain hose with hot water and a little white vinegar. Soaking in a mild disinfectant solution can also be helpful.
    2. Rinse the collection tank and the drain outlet thoroughly.
    3. Spray a mixture of warm water and white vinegar (20%) directly onto the fins at the back of the appliance to eliminate any biological traces.
    4. Let the dehumidifier run for 24 to 48 hours under the same conditions.
    5. If the brown liquid reappears:

    • It is then highly likely that the ambient air is the cause of this discoloration. You can:
    • Install a pre-filter on the air intake (a fine foam or a coffee filter can work temporarily),
    • Test the appliance in another room to see if the phenomenon disappears elsewhere.
